I need turn signal schematics for a 01 Suburban/Tahoe

ScottyBoy

No, that's not a banana in my pants.
Joined
Jun 5, 2009
Posts
13,668
Reaction score
3
Location
Shreveport
I am in the process of upgrading my 01 Suburban to the 03-06 GMT800 DL3 power folding and turn signal mirrors. I am looking for a turn signal wire in the dash. I would rather not have to tap in under the hood and run wires back into the cab if at all possible. I have already figured out everything else.


ScottyBoy

No, that's not a banana in my pants.
Joined
Jun 5, 2009
Posts
13,668
Reaction score
3
Location
Shreveport
Never mind. I found them pins 6 and 7on the brown plug on the BCM. Pin number 6 is light blue and that is the drivers side turn signal. Pin number 7 is a dark blue wire and that is the passenger side turn signal.



txab

Don't get stuck on stupid!
Joined
May 28, 2009
Posts
3,639
Reaction score
56
Location
Texas
Glad we could help you out. :jester:


daddy

I'm too LAZY to Choose a Custom Title!!!
Lifetime Supporting Member
Joined
May 17, 2009
Posts
46,703
Reaction score
73
Location
Pawnee, IN
:withstupid: You're welcome.


OldCracker29

I've been knocked down drug out and left for dead
Joined
May 26, 2009
Posts
76,683
Reaction score
693
Location
NE Ohio
down=left hand turn
up=right hand turn
I hope this helps. :jester:


ScottyBoy

No, that's not a banana in my pants.
Joined
Jun 5, 2009
Posts
13,668
Reaction score
3
Location
Shreveport
Thanks for all your help guys. :rolleyes:

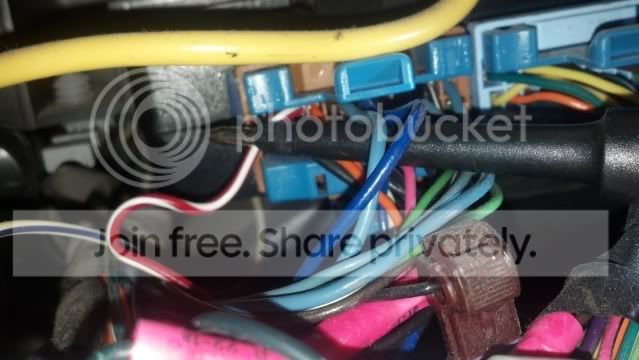

I should have just searched more before I asked. Using that power probe III makes wiring chores a piece of cake. Once I started rooting around with the probe, I found them in less than 2-3 minutes. :thumbs:


dirtyoldman

I'm now on Medicare,officially old.
Joined
May 21, 2009
Posts
16,511
Reaction score
3
Location
Saugus,Ca.
Ever considered subscribing to ALLDATA? I have three vehicles there....it's been a lot of help.


ScottyBoy

No, that's not a banana in my pants.
Joined
Jun 5, 2009
Posts
13,668
Reaction score
3
Location
Shreveport
Ever considered subscribing to ALLDATA? I have three vehicles there....it's been a lot of help.

I thought about it, but I couldn't justify the cost being that I can already get most wiring info from the12volt.com and other car alarm forum sites. Plus I also just find a lot of stuff myself too since I have the proper test probe to measure voltage and polarity on any wire that I probe with my tester. If I was doing an engine swap or rewiring an entire vehicle, the All data would be worth it in that situation.


dirtyoldman

I'm now on Medicare,officially old.
Joined
May 21, 2009
Posts
16,511
Reaction score
3
Location
Saugus,Ca.
Ever considered subscribing to ALLDATA? I have three vehicles there....it's been a lot of help.

I thought about it, but I couldn't justify the cost being that I can already get most wiring info from the12volt.com and other car alarm forum sites. Plus I also just find a lot of stuff myself too since I have the proper test probe to measure voltage and polarity on any wire that I probe with my tester. If I was doing an engine swap or rewiring an entire vehicle, the All data would be worth it in that situation.

I'll have to check out that website,sounds interesting.I've been wanting a PowerProbe for a long time,someday.....


Hickspanic

There once was a man from Nantucket
Joined
May 21, 2009
Posts
5,437
Reaction score
0
Location
D-ville
Ever considered subscribing to ALLDATA? I have three vehicles there....it's been a lot of help.

I thought about it, but I couldn't justify the cost being that I can already get most wiring info from the12volt.com and other car alarm forum sites. Plus I also just find a lot of stuff myself too since I have the proper test probe to measure voltage and polarity on any wire that I probe with my tester. If I was doing an engine swap or rewiring an entire vehicle, the All data would be worth it in that situation.

I'll have to check out that website,sounds interesting.I've been wanting a PowerProbe for a long time,someday.....

That sounds like a good name for an adult movie, :lol: :paranoid:
